MP 1000 E
Multi Source Player

The Multi Source Player

This is a unique device reflecting an ingenious design philosophy, as it combines the classic music source of CD with the ability to play digital music formats from a vast range of sources! Please note: the MP 1000 E is NOT a computer; it is a first-class audiophile CD player incorporating supplementary functions designed to enable other internal and external digital sources to exploit its outstanding converter. With this aim in mind we developed a mainboard which can process five different digital sources at superb quality and devoid of jitter; a new Streaming Client (SCL), which is a network-enabled processor board featuring WLAN, LAN and USB interfaces; a high-quality digital tuner; a High-End CD mechanism and a Digital Connecting Board fitted with five high-quality digital SP/DIF inputs, a computer USB input and an aptX® Bluetooth module.
These features permit the MP 1000 E to access everything which delivers music: Internet radio with Airable Internet Radio Service; UPnP network music servers and USB memory media; FM, FM-HD and DAB+ radio; CDs and music from computers, laptops or other external sources via the SP/DIF inputs. HD Bluetooth streaming from mobile devices is also possible at superb quality.

The USB Device Mode input is intended for streaming music files from a computer, and we deliberately designed it to be of exceptionally high quality. It can process data rates up to 32-bit / 384 kHz for PCM and DSD 256 (12 MHz).
The heart of the MP 1000 E is its double-mono differential converter (DAC) combined with audiophile high-bandwidth analogue output stages. It even possesses a sophisticated clock resynchronisation circuit to eliminate jitter and all forms of external interference. It is this combination which is responsible for the MP 1000 E’s incredibly natural, lively “analogue sound”, which is refreshingly different from many other digital players.
As an option the MP 1000 E can be fitted with the VVM pre-amplifier module to provide volume control; this may be necessary, for example, if you wish to use active loudspeakers with the machine.

Show more

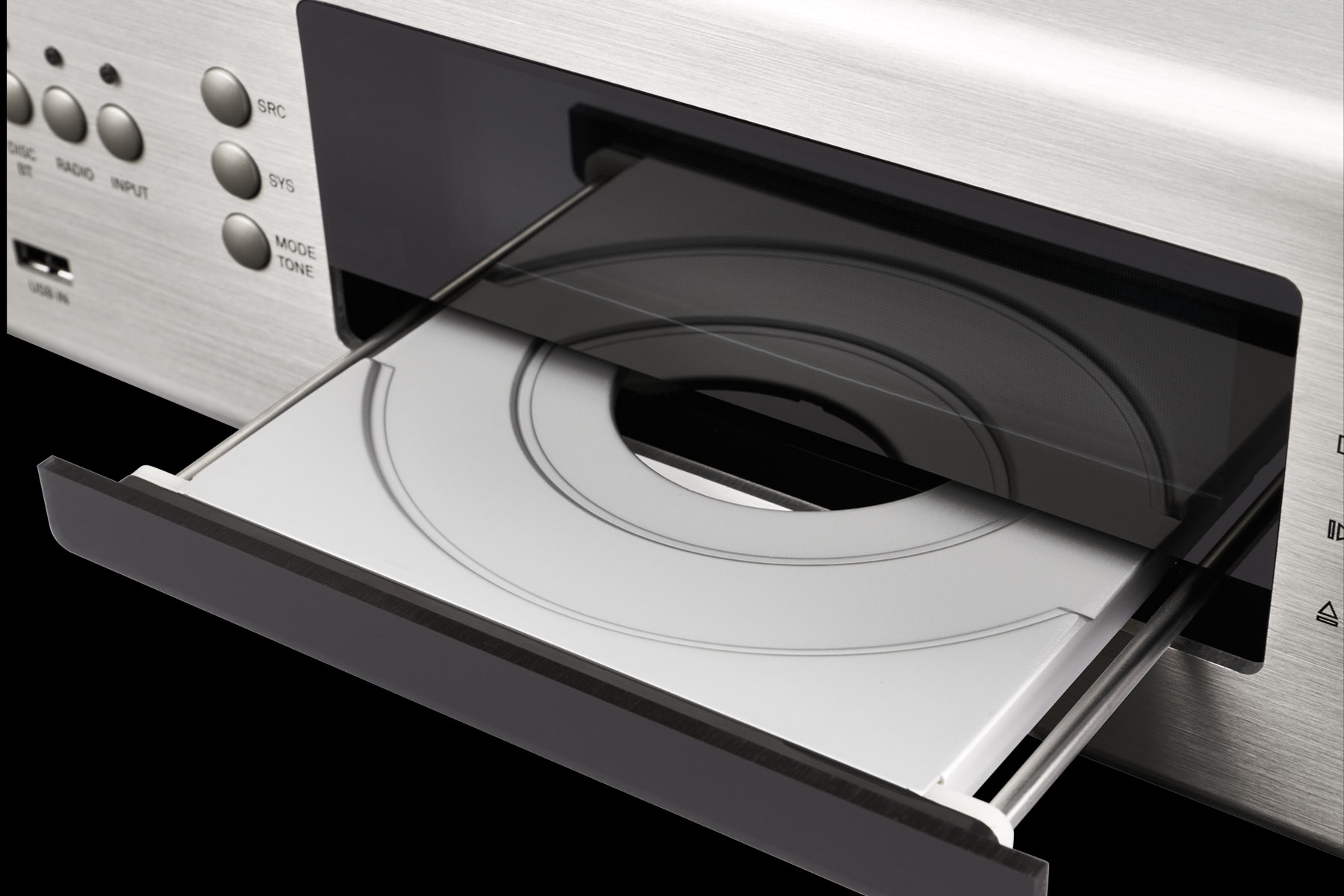

CD-Mechanism

We designed the MP 1000 E to continue the proud tradition of our legendary Disc Players, and it therefore ranks as a thoroughbred stereo CD player. For this reason it is vastly superior to any computer solution as far as audiophile requirements are concerned.
The digital signals from the CD mechanism, the Streaming Client Board, the digital tuner, and the Digital Connecting Board with SP/DIF and USB inputs are converted into analogue signals in a fully symmetrical process by the highly sophisticated double-mono differential converter (DAC), which produces very high standards of quality. It is the core of the MP 1000 E, and even features a sophisticated clock resynchronisation circuit to eliminate jitter and all forms of external interference.

Converter

The unit employs the latest 32-bit converters from Burr Brown (TI). These features make the MP 1000 E a High-End audio DAC for external sources as well as a High-End player for the integral sources! There are even two modes for the filter characteristics, allowing the user to fine-tune the converter to suit particular characteristics of the selected source. Downstream from the digital signal conversion a high-quality audiophile analogue output stage with high bandwidth (100 kHz) is responsible for further signal processing. This section is perfectly matched to the balanced and unbalanced outputs, and makes an important contribution to the machine’s superb overall sound quality.
The five High-RES digital inputs (coax at 192 kHz and optical at 96 kHz) can be used to enable external sources to be converted by the integral DAC to high quality levels; in this way other devices can exploit the extraordinary sound qualities of the MP 1000 E. The extremely high-class USB / DAC input is designed for streaming DSD or PCM music files from a PC at very high definition; up to PCM 384 or DSD 256 is possible. The machine also features input sockets for USB devices, LAN and a WLAN USB aerial.
The MP 1000 E is supplied complete with the SRC 1 system remote control handset, which can also be employed to control the PA 1000 E. All that is required to complete the “E-2 Link” data bus connection.

Specifications

Audio data

Total harmonic distortion

0,0015 %

Signal / noise ratio

109 dBA

Channel separation

106 dB

Analogue outputs unbalanced (RCA)

2,5 Veff / 50 Ohms fixed
with VV-modul 0 ... 2,5 Veff variable

Analogue outputs balanced (XLR)

5,0 Veff / 50 Ohm fixed
with VV-module 0 ... 5,0 Veff variable

Headphones

6,3 mm plug > 32 Ohm

CD-Player

Formats

CD/DA,CD-R, CD-RW, CD-Text

Frequency response

2 Hz - 20 kHz / 100 dB

Bluetooth

Standards / Codecs

A2DP (Audio), AVRCP 1.4 (Control) / aptX ® , MP3, SBC

Streaming Client

Formats

MP3 , AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC

Data rates

PCM 32...192 kHz,16/24 Bit;
MP3 up to 320 kBit, constant and variable data rate

Features

Gapless Playback for MP3 (Lame), WAV, FLAC.
T+A MusicNavigator App for iOS and Android

Standards

UPnP AV

Services

Tidal, Deezer, qobuz, Roon Ready (subscription required)

Interfaces

LAN: Fast Ethernet 10/100 Base-T, WLAN: 802.11 b/g/n

D/A-Converter

D/A-Converter

32-bit, 384 kHz Sigma Delta, double-mono differential converter, switchable
oversampling filters

Analogue filter

Symmetrical, phase linear Besselfilter 3rd order 100 kHz

Frequency response up to PCM 384

2 Hz - 100 kHz

Frequency response up to DSD 256

2 Hz - 80 kHz

Digital Connecting Board

Inputs 2 x USB 2.0

for USB storage/HDD. Formats: NTFS, FAT 16/32, Ext2 + 3 + 4.

Inputs 1 x USB-B

Class 2 Device Mode, asynchron, PCM 48...384 kHz, DSD64...256
(depending on Player-Software and operating system)

Inputs 3 x coax S/P-DIF

PCM 32...192 kHz

Inputs 2 x opt. S/P-DIF

PCM 32...96 kHz

Output 1 x coax S/P-DIF

PCM 32...192 kHz (IEC60958)

Tuner

Internet Radio

Airable Internet Radio Service (> 11000 Stations world wide)

FM, FM-HD

87,5 - 108 MHz;
sensitivity 1 µV;
S/N > 65 dB

DAB, DAB+

168 -240 MHz (Band III);
sensitivity 2,0 µV,
S/N > 96 dBA

Features

RDS/RDBS, station name (PS), program type (PTY),
radio text (TR), clock

Mains / Accessories / Dimensions

Accessories

IR Remote control SRC 1;
WLAN modul;
Bluetooth-antenna; mains cable

Remote control

SRC 1

Mains

220-230 V or 110-115 V, 50-60 Hz

Power consumption max.

40 Watts

ECO-standby

0,4 Watt

Auto power off function

yes (after 90 minutes without audio signal)

Dimensions (H x W x D)

44 x 11,5 x 35,5 in cm

Weight

11 kg

Finishes

Silver case + black side panels. Silver case + silver side panels.
Black case + black side panels. Black case + silver side panels.

Technical modifications reserved

Support

Catalogue

Catalogue E-Series

User manual

User manual MP 1000 E
TIDAL registration information
Information on radio reception

App

MusicNavigator App

Firmware / Driver

System requirements
Installation manual USB-driver
Uninstallation manual drivers (Windows 10)
Versions info

Roon Ready

Update your MP 1000 E to the latest firmware. Select the "Device Info" menu item in the device configuration menu. Now select "Update" and confirm the set selection "WEB". Wait until the update is finished. Make sure that your PC and your MP 1000 E are connected to the same network. Next, sign up for a Roon membership and download Roon for your PC or MAC. You can also download the Roon app for Android or iOS devices.

Used licenses

GPL

For a period of three years after last distribution of this product or its firmware, T+A offer the right to any third party to obtain a complete machine-readable copy of the corresponding source code on physical storage medium (DVD-ROM or USB stick) for a charge of 20€. To obtain such copy of the source code, please write to the following address including information about product model and firmware version: T+A elektroakustik, Planckstr. 9-11, 32052 Herford, Germany.

LGPL

For a period of three years after the last sale of this product or its firmware, T + A offers any third party the right to receive a complete machine-readable copy of the corresponding source code on a physical storage medium (DVD-ROM or USB stick) for a fee of € 20 to obtain. In order to receive such a copy of the source code, please write to us, specifying the device type of the relevant product and the firmware version:T+A elektroakustik, Planckstr. 9 -11, 32052 Herford, Deutschland

BSD

MIT

Reviews

Fidelity 5/2019

Ein Duo zum Verlieben
Das Zweigespann aus MP 1000 E und PA 1000 E weckt nicht nur tiefer liegende Erinnerungen, sondern schafft es auch, echte Emotionen zu wecken.Das E-Gespann aus dem Hause T+A bietet alle Möglichkeiten, die man einer zeitgemäßen Anlage abverlangen darf und ist klanglich über jeden Zweifel erhaben. Produktpflege und Verarbeitung passen.

Den gesamten Test lesen...

Hi-Fi News 3/2017

Audio PL 6/2017

Chociaż na nikim, kto zna ofertę T+A, koncepcja wieloformatowego źródła nie robi większego wrażenia, to na tle całego rynku wciąż są to urządzenia oryginalne i niemające większej konkurencji. MP1000E jest najnowszym źródłem w serii E, co wobec zmieniających się standardów cyfrowych ma dużą wagę. Niezależnie od tego, nowe urządzenia T+A mają jeszcze solidniejsze obudowy, z dodanymi grubymi panelami bocznymi.

Den gesamten Test lesen …

The T+A combination of MP 1000 E and PA 1000 E is without doubt impressive, but the MP 1000 E player is the more striking of the two units. Whether playing CDs, network music sources or direct from USB storage, it has impressive levels of insight and detail, and very fine extension, pace and drive. That it looks and feels so good, and is a pleasure to use especially with the well-designed TA Control app - simply adds to the player appeal. T+A´s new MP 1000 E is very much the modern music centre.

stereo 10/2016

T+As MP 1000 E vereint zahllose Quellen vom CD-Spieler über Streaming bis hin zu Bluetooth und Web-Features mit superber Verarbeitung und einem im wahrsten Sinne des Wortes edlen Charakter. So stellen wir uns ein Quellgerät des 21. Jahrhunderts vor.

Klang-Niveau CD: 92 %
Klang-Niveau DAC: 90 %
Klang-Niveau Streamer: 93%
Preis/Leistung: überragend

Den gesamten Test lesen ...

Audio 9/2016

Überragender CD-Player, erstklassiger Streamer, toller DAC, prima Tuner, aufrüstbar zum Vorverstärker

Eine variablere Quelle auf diesem Niveau ist mir noch nicht untergekommen. Der Multi-Source-Player MP 1000 E ist ein Tausendsassa, der PA 1000 E "nur" ein Vollverstärker, aber ein verdammt guter. Im Team sind die beiden Komponenten der E-Serie in Klang und Ausstattung für dieses Geld nicht zu schlagen...Hut ab!

Klang Cinch/XLR: 135/140
Ausstattung: überragend
Bedienung: sehr gut
Verarbeitung: überragend
Preis/Leistung. überragend
